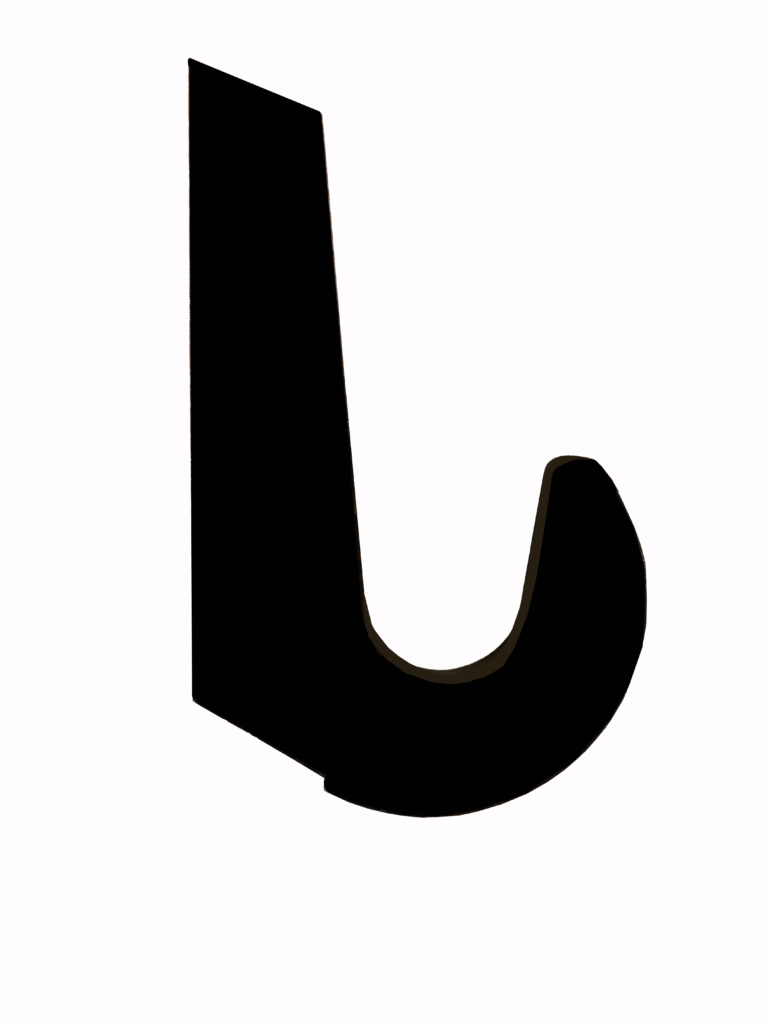

BFB2 2 Inch Bucket Fork J Hook – Weld-On Mount

The PRO-Link BFB2 2 inch bucket fork J hook (SKU 366) is a weld-on mounting component for a compatible bucket fork system using a 2 inch shaft. Welded to the top of a suitable loader bucket, the hook provides a shaped seat for the removable shaft that carries the fork assemblies. Its tall shank and curved J profile are intended for many John Deere, CAT, Kubota, and other non-Case buckets when the actual bucket shape permits proper installation. This is a hook component, not a complete bucket fork kit.

BFB2 J Hook Dimensions and Bucket Fit

The supplied dimension graphic shows an overall height of 10 1/2 inches, an overall width of 6 1/8 inches, and 1/2 inch steel thickness. It also labels a 2 5/8 inch opening, a 3 inch hook height, a 2 1/2 inch shank width, and a 1 7/8 inch width at the top of the shank. The 2 inch designation refers to the bucket fork shaft size; the opening shown on the graphic is a separate physical measurement. Compare the complete hook profile, shaft, and installed position before ordering.

A bucket’s make or model does not establish fit by itself. Check its top edge, lip, reinforcement, steel structure, and available room for the hook and shaft. Many Case-style buckets use a different Case hook profile. An existing fork system may also require a different hook shape or location. If you are replacing a damaged hook, compare these dimensions with the original and check the condition of the bucket before any repair.

For a new installation, photos taken from the front and side of the bucket can help identify its top-edge shape. Measure the bucket and confirm where the hooks must sit so the shaft will align across its width. PRO-Link’s guide to choosing J hooks and Case hooks explains the difference between the two mounting profiles.

Installing the Weld-On Hook

A qualified welder or fabricator should determine whether the bucket is suitable and where the BFB2 hooks must be mounted. Hook position and spacing affect shaft alignment, fork clearance, and how lifting forces enter the bucket. The installer should check the bucket structure and the requirements of the complete fork system before welding. Do not select a hook solely because the equipment brand appears on a compatibility list.

In a properly matched over-the-bucket fork setup, the welded hooks support the shaft while the fork assemblies ride on it. The hooks stay on the bucket after installation. The shaft and forks can be engaged when material needs to be moved, then disengaged when the bucket returns to its normal work. The forks themselves are not welded to the bucket.

The BFB2 is useful when assembling a compatible system or replacing a hook with the same verified profile. The hook alone does not determine the lifting capacity of the finished attachment. Machine rating, bucket construction, forks, shaft, welds, installation, and load position must all be considered. Compare PRO-Link’s AG-GO bucket fork kits if you need a complete system. PRO-Link products are covered by a one-year limited warranty against manufacturer’s defects under the published terms.

Questions & Answers

Does BFB2 fit every John Deere bucket?

No. It suits many John Deere and other non-Case bucket designs, but the actual top-edge shape, dimensions, structure, and installation location must be checked.

Why does a 2 inch hook show a 2 5/8 inch opening?

The product designation identifies the intended bucket fork shaft size. The graphic separately measures the hook opening. Confirm the shaft and full mounting geometry before installation.

How many hooks does my bucket need?

The required number and spacing depend on the fork kit, shaft, bucket width, and installation design. Confirm the configuration for your particular system before ordering or welding.
