3P132-48 3 Point Hay Spear – Rear Tractor Attachment

The AG-GO 3P132-48 3 point hay spear gives tractor owners a straightforward rear-mounted attachment for lifting, carrying, feeding, and staging one round bale. It connects to a properly matched three-point hitch and combines a 48 inch bolt-on bale spear with two welded stabilizer bars. This simple configuration provides deep bale engagement while helping control rotation and side-to-side movement.

Farmers comparing different connections, spear arrangements, and bale capacities can explore the complete selection of AG-GO hay spear attachments and bale movers.

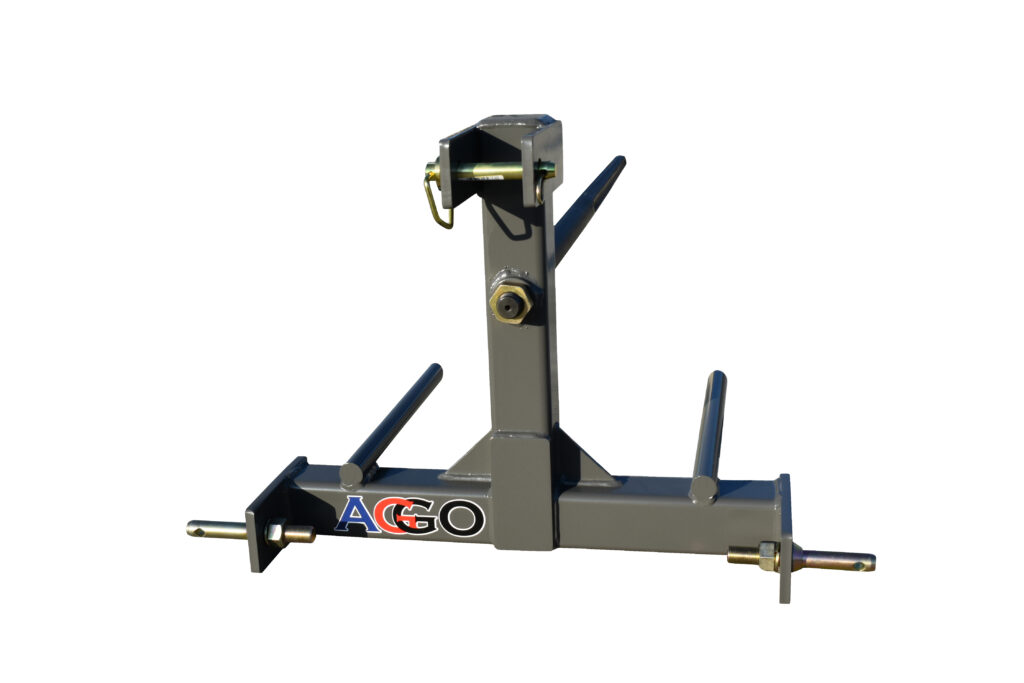

48 Inch Bolt-On Spear with Bale Stabilizers

The primary tine is an S48S 48 inch hay bale spike. This 1 5/8 inch fluted Hayspears® model uses a cross-hole bolt-on connection and carries a published rating of 3,000 pounds at a 30 inch load center. The long spear penetrates deeply into a suitable round bale, while its serviceable connection allows the tine to be replaced if it becomes worn or damaged.

Two 1 inch diameter stabilizer bars are welded directly to the frame. These shorter spikes support the bale beside the main spear, helping limit spinning, swinging, and sideways movement. That additional control is useful while crossing farmyards, feeding livestock, moving between storage locations, or traveling over uneven ground.

The spear’s 3,000 lb rating does not automatically become the capacity of the entire attachment or tractor. The frame, connection pins, three-point hitch, tractor, ballast, tires, and bale position must remain within their individual limits. Always follow the lowest-rated part of the complete system.

The 3P132-48 is intended for one appropriate round bale. Depending on actual weight and tractor setup, that may include common 4 foot by 4 foot, 4 foot by 5 foot, 5 foot by 5 foot, or 5 foot by 6 foot round bales. Outside dimensions are only a starting point. Two bales of the same size can differ greatly in weight because of crop type, compression, moisture, and weather exposure.

Dry Bermuda grass, fescue, prairie hay, mixed grass, alfalfa, and straw are common baled materials that may be handled when the complete setup is properly rated. Cornstalk bales and other baled forage may also be suitable when their weight and condition are known. Wet hay, wrapped silage, haylage, and other high-moisture forage can be substantially heavier than dry hay, so the operator should never choose a setup by diameter alone.

Bale condition matters too. A weathered, loosely rolled, or damaged bale may not hold securely around a single spear. Engage a firm portion of the bale and make sure the stabilizer bars enter properly before lifting. This single-bale design is intended for round bales; large square bales generally require a wider, multi-spear frame.

Category 1 Tractor Connection, Machine Fit, and Daily Use

The standard 3P132-48 configuration fits Category 1 tractor three-point hitches and includes all three connection pins. Category 1 hitches are commonly found on many subcompact tractors, compact tractors, small utility tractors, and some older farm tractors. The presence of a Category 1 hitch does not guarantee that a machine is large or heavy enough to manage a loaded bale. Some subcompact tractors may have the correct connection but lack the rear lift capacity, tractor weight, tire rating, or front ballast needed for the bale being moved.

Compact utility and utility tractors are often used for feeding, pasture work, and carrying bales between a barn and feeder. Larger utility, row-crop, and full-size agricultural tractors may use Category 2 or Category 3 hitch dimensions. PRO-Link can provide those configurations, or discuss a custom version, by request. Tractor size, age, and brand do not identify hitch category by themselves.

This rear three-point attachment does not connect directly to front-end loaders, skid steers, telehandlers, or wheel loaders. Those machines require a different AG-GO frame or machine-specific connection.

Confirm hitch dimensions, rear lift capacity, axle and tire limits, ballast, and clearance before ordering. Tractor horsepower alone does not determine whether the machine can raise, steer, and stop safely with a bale.

Common uses include:

• Carrying a round bale from storage to a feeder
• Moving hay between fields, barns, and staging areas
• Repositioning straw or baled forage around the farm
• Supporting routine cattle and livestock feeding
• Reducing repeated loader work during winter feeding routes

Keep the bale low during transport and operate at a controlled speed. Avoid sudden turns, stops, or side-hill travel with a raised load. Follow the tractor manufacturer’s instructions for rear-mounted loads and ballast. Inspect the frame, spear, pins, retainers, and linkage before use.

Producers who need to transport two large round bales behind a suitable tractor can compare the 3P2BM-49 rear two-bale hay frame. The 3P132-48 is manufactured in the USA as part of the AG-GO attachment line at PRO-Link’s production facility and is protected by PRO-Link’s one-year limited warranty against manufacturer’s defects.

Questions & Answers

What tractors can use the 3P132-48?

The standard attachment fits a properly matched Category 1 three-point hitch, commonly found on many subcompact, compact, and small utility tractors. Category 2, Category 3, and custom versions are available by request. Rear lift capacity, ballast, and bale weight must still be checked.

How does this 3 point hay spear control bale rotation?

The 48 inch main spear carries the bale, while two welded 1 inch stabilizer bars help reduce rotation and side-to-side movement. Engage a firm section of the round bale and travel with the load only high enough to clear the ground.

What types and sizes of hay bales can it move?

The 3P132-48 is designed for one suitable round bale and may be considered for common sizes from 4 foot by 4 foot through 5 foot by 6 foot when the actual weight stays within every limit. Dry grass hay, alfalfa, mixed forage, straw, or cornstalk bales may be suitable. Wet hay, silage, and haylage require extra caution because moisture and density can add substantial weight.
