BF6048 48 Inch Bucket Forks – 6,000 lb Kit

Description

The BF6048 48 inch bucket forks turn a properly matched loader bucket into a versatile material-handling system for farm, construction, landscaping, and industrial work. This AG-GO over-the-bucket kit is built for operators who need more lifting capability than a light attachment can provide but still want to keep using the bucket already installed on their machine.

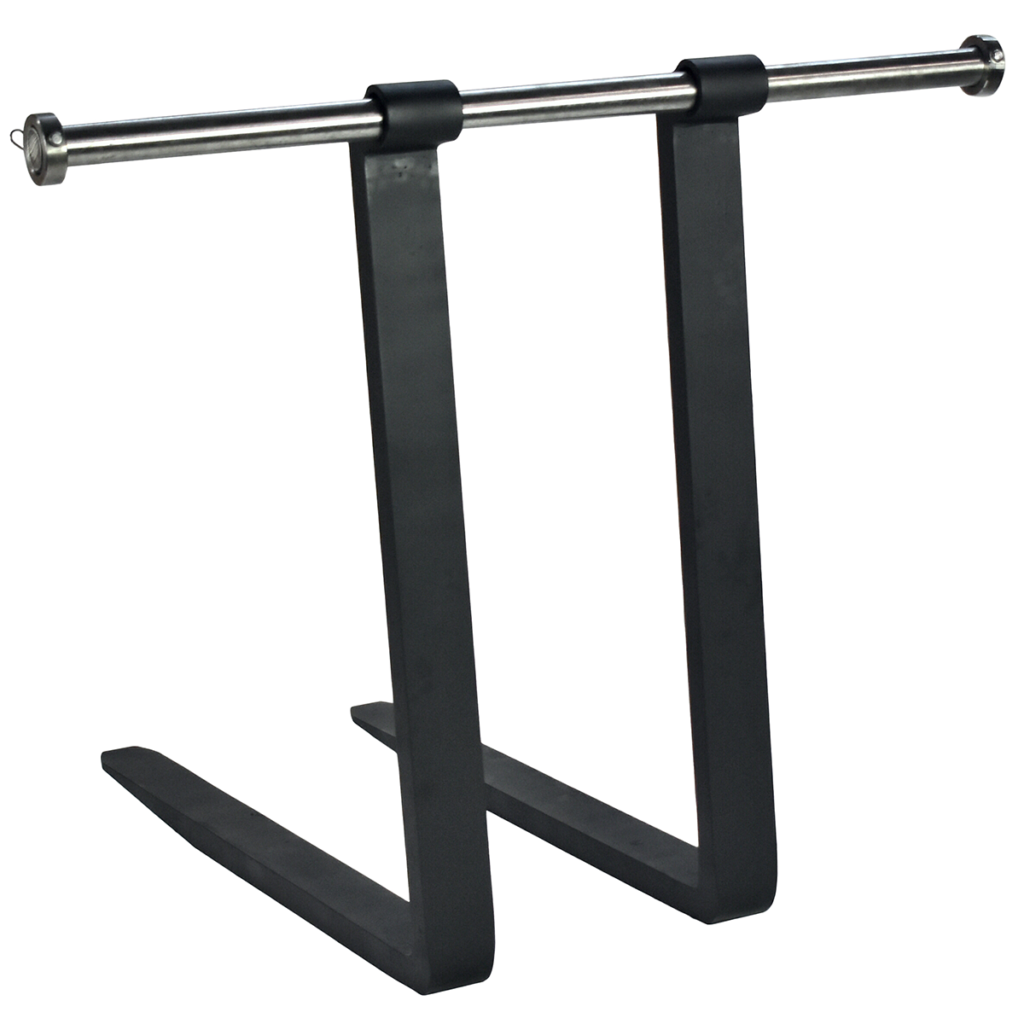

The complete system uses two heavy-duty 48 inch fork assemblies, welded steel bushings, a 2 inch diameter by 87 inch solid steel shaft, four weld-on mounting hooks, and the required retaining hardware. It carries a published kit rating of 6,000 lb and is designed for compatible bucket openings up to 38 inches. The fork assemblies slide along the shaft, allowing the operator to change their spacing for pallets, feed totes, lumber, fencing, pipe, landscaping supplies, and other loads.

A 48 inch fork length is a practical choice for standard pallets and everyday material handling. It offers substantial support beneath the load while remaining easier to maneuver than a longer 60 inch configuration. Farmers, ranchers, contractors, and property owners can compare the BF6048 with other AG-GO bucket fork kits to determine which capacity, blade length, and bucket size best fit their equipment.

How the BF6048 Weld-On Hook System Works

The BF6048 uses a weld-on-hook mounting system. Four supplied steel hooks are permanently welded to the top front area of a compatible bucket by a qualified welder or fabricator. The shaft rests in or is supported by those hooks, and the two fork assemblies ride on the shaft through their welded bushings. Retaining hardware secures the assembly after it is positioned.

Correct hook placement is important. The hooks must be aligned so the shaft sits evenly across the bucket and the fork backs make proper contact when the bucket is rolled into operating position. Poor alignment could cause uneven loading, restricted movement, or unnecessary stress on the bucket. Before welding, the installer should check the bucket’s top-edge construction, reinforcement, steel condition, clearances, and intended loads.

After the initial hook installation, the shaft-and-fork assembly can be picked up or set down through controlled bucket movement. Only the hooks remain attached to the bucket. This allows the operator to remove the forks and return the machine to digging, loading loose material, grading, or cleanup work without replacing the entire bucket.

Adjustable Fork Spacing and Included Components

The sliding design lets both fork assemblies move across the solid shaft. Operators can position them closer together for narrower loads or farther apart for wider pallets and bundled materials. Fork spacing should remain balanced around the center of the bucket so the load is supported evenly.

The BF6048 system includes:

• Two 48 inch heavy-duty fork assemblies
• Welded steel bushings
• One 2 inch by 87 inch solid steel shaft
• Four weld-on bucket hooks
• Retaining washer and hitch-pin hardware

Hook style must match the bucket. Case-style hooks are intended for many Case buckets. J-hooks are commonly used for John Deere and many non-Case buckets when the bucket geometry is suitable. Machine brand by itself does not guarantee compatibility. The buyer should verify actual bucket measurements and construction before ordering.

PRO-Link’s bucket fork kit selection guide explains how the mounting system works and compares the available AG-GO models. Buyers who are unsure which hook style they need can contact PRO-Link with photographs and measurements of the bucket before ordering.

Material-Handling Uses, Fit, and Capacity

The BF6048 helps turn equipment already working on the property or jobsite into a useful pallet- and material-handling machine. On farms and ranches, the forks can carry properly secured pallets of seed, feed, mineral, bagged supplies, fencing materials, and other agricultural products. They can also support lumber, posts, pipe, brush, logs, and maintenance supplies when the material is stable and correctly positioned.

Contractors and landscapers may use the kit for pallets of jobsite materials, bundled lumber, concrete forms, landscape supplies, fencing, pipe, and cleanup work. For warehouses, equipment yards, and rural properties, the adjustable spacing makes it easier to handle loads with different widths without dedicating the machine to a permanent pallet-fork frame.

The over-the-bucket design is especially useful for operators who regularly switch between different jobs. The forks can be used to unload a delivery, carry materials across a property, or position supplies near a work area. Once that work is complete, the removable shaft and fork assemblies can be set aside so the bucket is available for its original purpose.

Understanding the 6,000 lb Kit Rating

The BF6048’s 6,000 lb rating applies to the bucket fork kit; it does not automatically mean the completed machine can safely lift 6,000 lb. The usable capacity of the finished setup is controlled by its lowest-rated part. That includes the machine, loader arms, hydraulics, bucket, hooks, shaft, fork assemblies, welds, retaining hardware, tires, ballast, and operating conditions.

Bucket-mounted forks position the load farther forward than the bucket’s original cutting edge. This added distance changes the load center and increases leverage against the loader. As the load moves farther toward the fork tips, the machine’s available lifting ability and stability can decrease. Operators should follow the machine manufacturer’s load limits and never use the kit rating as permission to exceed the loader or bucket capacity.

The load itself also matters. A neatly stacked pallet with evenly distributed weight behaves differently from a long log, loose bundle, or uneven piece of equipment. Operators should know the approximate weight and center of gravity before lifting. Materials that could roll, slide, or shift should be properly secured before the machine moves.

Before each use, inspect the fork blades, welded bushings, shaft, hooks, welds, washer, hitch pin, and bucket structure. Stop using the attachment if any component is bent, cracked, loose, excessively worn, or out of alignment. Keep the load centered between the forks with its heaviest portion close to the fork backs. Carry loads low, travel slowly, and avoid sudden turns, stops, or movements on uneven ground.

Additional bucket fork measuring and setup guidance is available for buyers who need help understanding bucket height, hook style, shaft positioning, and installation.

The BF6048 is manufactured in the USA as part of the AG-GO attachment line at PRO-Link’s production facility. Its heavy-duty construction, adjustable spacing, and removable design provide a practical balance between material-handling ability and continued use of the existing loader bucket.

Questions & Answers

What buckets can use the BF6048?

The BF6048 is designed for compatible bucket openings up to 38 inches. Compatibility also depends on bucket width, top-edge shape, steel condition, reinforcement, available clearance, selected hook style, machine capacity, and professional installation. Measure the actual bucket rather than relying only on the machine’s make or model.

Are the BF6048 forks adjustable and removable?

Yes. The two fork assemblies slide along the 87 inch shaft so their spacing can be adjusted for different load widths. After the four hooks are welded to the bucket, the operator can remove the shaft-and-fork assembly when the bucket is needed for digging or handling loose material.

What warranty covers the BF6048?

The BF6048 is protected by the PRO-Link one-year limited warranty against manufacturer’s defects under the published terms. The warranty does not cover normal wear, misuse, overloading, improper installation, unauthorized changes, or operation outside the product’s intended purpose and capacity limits.
