BF8048 8,000 lb Bucket Fork Kit – 48 Inch Forks

Description

The BF8048 8,000 lb bucket fork kit gives properly matched larger loaders, backhoes, wheel loaders, tractors, and skid steers a removable system for handling pallets and heavy materials with an existing bucket. This AG-GO attachment combines a high published kit rating with 48 inch fork blades, making it a practical choice for operators who need substantial capacity without the additional reach of a 60 inch model.

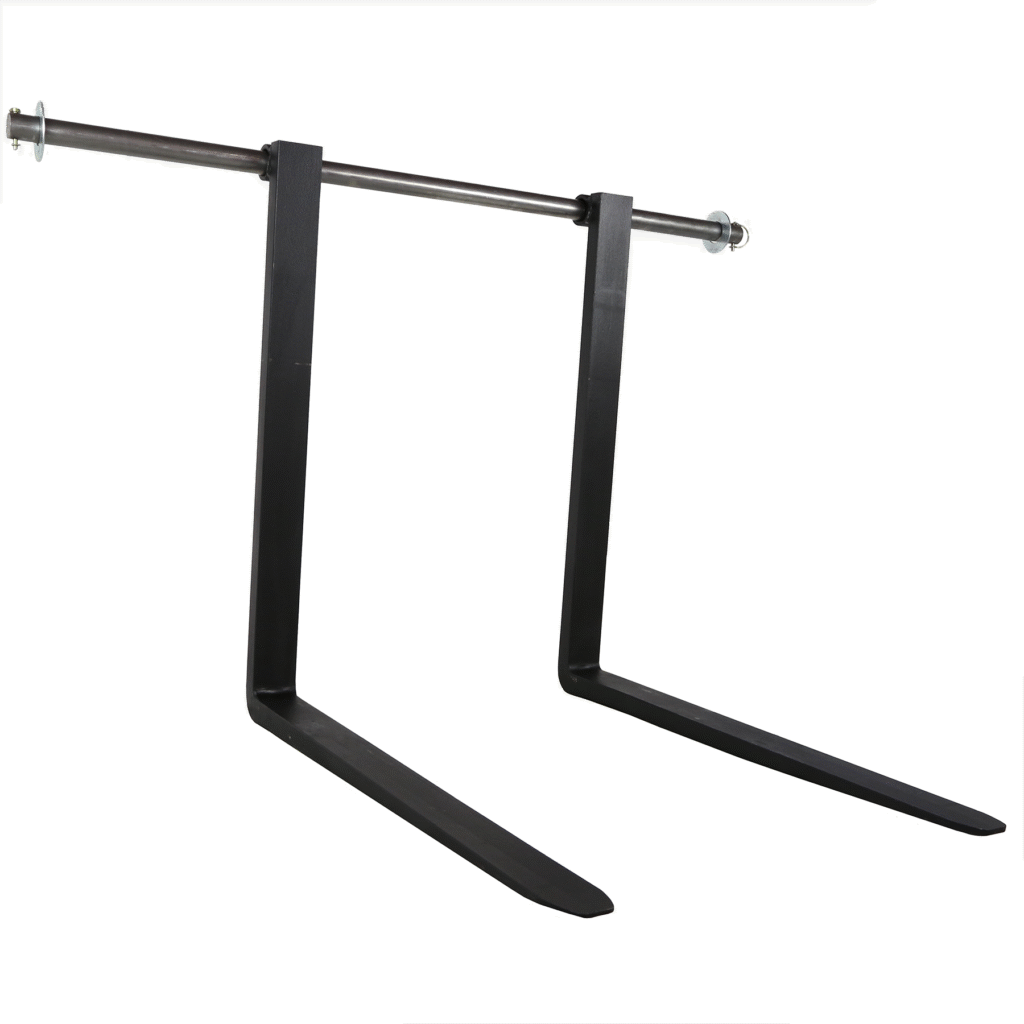

The complete system includes one pair of heavy-duty fork assemblies with welded steel bushings, a 2 inch diameter by 87 inch solid steel shaft, four weld-on mounting hooks, and shaft-retaining hardware. It is designed for compatible bucket openings up to 43 inches. The fork assemblies slide along the shaft so their spacing can be adjusted for different pallets, bundles, and materials.

The BF8048 can support properly positioned loads such as seed and feed pallets, bagged farm supplies, fencing, lumber, pipe, building materials, equipment components, logs, and landscape supplies. Actual suitability depends on the weight and shape of the material, the machine’s limits, bucket construction, installation, ground conditions, and load position. Buyers can compare the BF8048 with the complete range of AG-GO bucket fork kits before selecting a capacity and fork length.

48 Inch Bucket Forks with a Weld-On Hook System

The BF8048 uses four steel hooks that are welded to the top front area of a compatible bucket. These hooks support the solid shaft across the bucket. The fork assemblies ride on the shaft through their welded bushings, and the retaining washer and hitch pin hold the shaft-and-fork assembly in position.

Only the mounting hooks remain permanently attached to the bucket. After installation, the operator can use controlled bucket movements to engage or set down the removable assembly. This lets the same machine return to digging, loading loose material, cleanup, and other normal bucket work after the forks are removed.

Hook positioning affects how the shaft sits, how the fork backs contact the bucket, and how lifting forces enter the bucket structure. A qualified welder or fabricator should inspect the bucket and install the hooks with the correct alignment and spacing. Before welding begins, the installer should examine the top edge, reinforcement, steel thickness and condition, shaft clearance, fork position, and intended operating loads.

Adjustable Spacing and Hook Selection

Both fork assemblies slide across the 87 inch shaft. The operator can position them closer together for narrower loads or move them outward for wider pallets and bundles. They should be spaced evenly around the bucket’s center so the load remains balanced and both fork blades carry their share of the weight.

The BF8048 includes:

• One matched pair of 48 inch heavy-duty fork assemblies
• Welded steel fork bushings
• One 2 inch by 87 inch solid steel shaft
• Four weld-on steel bucket hooks
• Retaining washer and hitch-pin hardware

Hook style must be selected for the bucket. Case-style hooks serve many Case buckets, while J-hooks are commonly used with John Deere and many non-Case buckets when their geometry is appropriate. Brand name alone does not guarantee fit. The buyer must verify the actual bucket opening, width, top-edge profile, construction, and available clearance.

The AG-GO bucket fork guide explains the mounting method and compares all six kit sizes.

The BF8048 is designed for bucket openings up to 43 inches, but that measurement is only one part of compatibility. A bucket could meet the opening measurement and still require additional evaluation because of its shape, reinforcement, damage, previous repairs, or unusual top-edge design. Customers who are uncertain should provide PRO-Link with machine information, bucket measurements, photographs, and the materials they plan to handle.

High-Capacity Material Handling and Operating Limits

The BF8048 is aimed at larger equipment performing demanding material-handling work. Farmers and ranchers can use it for properly secured feed, seed, mineral, fertilizer, fencing, lumber, posts, and maintenance supplies. Contractors can use the adjustable forks for pallets of building materials, pipe, concrete forms, jobsite supplies, and bundled products. Equipment yards and industrial operations may use the kit for outdoor pallet handling, parts movement, trailer loading, and material staging.

Its 48 inch blades are well suited to standard pallet work and applications where easier maneuvering matters. Operators who regularly handle deeper pallets, long pipe, poles, trusses, or materials that need support farther beneath the load may want to compare the BF8060 60 inch backhoe forks. Both models carry an 8,000 lb published kit rating, but the blade length changes how the attachment supports the load and how much room the machine needs to turn.

What the 8,000 lb Rating Means

The 8,000 lb rating applies to the BF8048 kit. It does not increase the rated capacity of the machine, loader, or bucket, and it does not mean every compatible setup can safely lift 8,000 lb. The usable working limit is determined by the lowest-rated part of the completed system. This includes the machine, loader arms, hydraulics, tires, ballast, bucket, mounting hooks, welds, shaft, fork assemblies, retaining hardware, and operating conditions.

Bucket-mounted forks move the load forward from the machine. As weight is placed farther toward the fork tips, leverage increases and the machine’s available lifting ability and stability can decrease. A compact, evenly loaded pallet behaves differently from a long log, pipe bundle, or load with an unknown center of gravity. Operators must follow the machine manufacturer’s limits and account for the weight, shape, balance, and position of the material being lifted.

Before every use, inspect the fork blades, bushings, shaft, hooks, welds, washer, hitch pin, and bucket structure. Do not operate the attachment if any component is bent, cracked, loose, excessively worn, or out of alignment. Space the forks evenly, center the load, keep its heaviest portion close to the fork backs, travel with the load low, and avoid sudden starts, turns, or stops.

The related bucket fork measuring and setup guide provides additional information about bucket measurements, hook selection, shaft positioning, installation, and load handling.

The BF8048 is manufactured in the USA as part of PRO-Link’s AG-GO attachment line. It is built for customers who need a high-capacity bucket-mounted fork system while preserving the ability to remove the fork assembly and continue using the original bucket.

Questions & Answers

What equipment can use the BF8048 8,000 lb bucket fork kit?

The BF8048 may be used with properly matched larger loaders, backhoes, wheel loaders, tractors, and skid steers. It is designed for compatible bucket openings up to 43 inches, but final fit depends on the bucket’s width, shape, construction, condition, hook area, clearances, and professional installation.

Should I choose the BF8048 or BF8060?

Choose the BF8048 when 48 inch forks provide enough support and maneuverability around pallets, buildings, equipment, or storage areas is important. Consider the BF8060 when long or deep materials regularly need the additional support provided by 60 inch blades. Neither model increases the machine’s rated lifting capacity.

What warranty covers the BF8048?

The BF8048 is covered by the PRO-Link one-year limited warranty against manufacturer’s defects under the published terms. Normal wear, misuse, overloading, improper installation, unauthorized alterations, and operation outside the product’s intended purpose or capacity limits are not covered.
