PRO-Link’s Top 5 Best-Selling Hay Bale Spears: Updated Capacity Ratings
Farmers and ranchers count on bale spears to move hay during feeding, stacking, loading, and transport. The right spear needs to match the bale, the attachment, and the machine. Capacity matters, but so do spear length, mounting style, and the parts holding everything together.
According to PRO-Link’s internal unit-sales records, the five models below are our best-selling individual hay bale spears. This ranking reflects sales of PRO-Link models; it is not an independent ranking of products from every manufacturer. The order remains the same, but our published ratings have increased following new testing: the standard 1⅝-inch Hayspears® line moves from 3,000 to 3,750 pounds, and the standard 1¾-inch HAYSTIX® line moves from 3,500 to 4,000 pounds.
The HAYSTIX® line has a separate distinction. Based on PRO-Link’s company sales and dealer records, HAYSTIX® is the number-one-selling bale spear line in the United States. PRO-Link has sold more than 800,000 bale spears and supplies more than 250 dealers across the country. Customers still need to choose by the exact model and mounting arrangement, not by sales rank alone.
How PRO-Link Ranked These Five Bale Spears
Our internal ranking for individual spear models is:
- 49TXJ — 1¾-inch HAYSTIX® tapered assembly
- 48TS — 1⅝-inch Hayspears® tapered assembly
- 48FX — 1⅝-inch Hayspears® cross-bolt assembly, formerly listed as 48SX
- 49BX — 1¾-inch HAYSTIX® bracketed assembly
- 48SS — 1⅝-inch Hayspears® cross-bolt assembly
The table shows the updated individual-spear ratings for these standard-line models. A spear rating is not the rated capacity of a finished hay frame, tractor, skid steer, loader, coupler, sleeve, bracket, or weld. Confirm the current specification for the exact model and the load-center conditions that apply to your use.
| Rank | Model | Spear size | Mounting design | Main included parts | Updated spear rating |
|---|---|---|---|---|---|
| 1 | 49TXJ | 49 in. × 1¾ in. | Square Conus II tapered | 144T weld-in sleeve and Doublenut® hardware | 4,000 lb |
| 2 | 48TS | 48 in. × 1⅝ in. | Fluted tapered | 114T weld-in sleeve and conical retaining nut | 3,750 lb |
| 3 | 48FX | 48 in. × 1⅝ in. | Fluted straight cross-hole | 155 weld-in sleeve, cross-bolt, and nut | 3,750 lb |
| 4 | 49BX | 49 in. × 1¾ in. | Straight square cross-hole in a bracket | 175BU bracket, U-bolts, and retaining hardware | 4,000 lb |
| 5 | 48SS | 48 in. × 1⅝ in. | Fluted straight cross-hole | 155 weld-in sleeve, cross-bolt, and nut | 3,750 lb |
1. 49TXJ: PRO-Link’s Best-Selling Individual Bale Spear
The 49TXJ best-selling bale spear leads our list. This HAYSTIX® assembly pairs a 49-inch by 1¾-inch square tapered Conus II spear with a matching 144T weld-in sleeve and PRO-Link’s Doublenut® mounting hardware. Its updated individual-spear rating is 4,000 pounds, up from the previous 3,500-pound rating.
The tapered shank seats in the sleeve. Tightening the conical nut draws the matching tapered surfaces together; the jam nut locks against it to help resist loosening under repeated use. The Doublenut® system is used on selected tapered HAYSTIX® models. It is not a feature of every HAYSTIX® spear.
The 49TXJ’s reach makes it a practical option for many large round and square bales when installed in a suitable frame. Its shaft has the traditional square HAYSTIX® profile. Buyers seeking a fluted 1¾-inch spear should compare the appropriate fluted models rather than assume the 49TXJ has that shape.
2. 48TS: A Tapered Hayspears® Assembly
The 48TS tapered bale spear ranks second. It uses a 48-inch by 1⅝-inch fluted tapered tine, a matching 114T weld-in sleeve, and a conical retaining nut. Its updated individual-spear rating is 3,750 pounds, up from 3,000 pounds.
The tapered, fluted profile helps the tine enter dense hay and release when the bale is set down. The 48TS uses its own matching sleeve and single conical retaining nut; it does not use the HAYSTIX® Doublenut® system. This distinction is useful when replacing a worn spear or ordering mounting parts for an existing frame.
For a new build, the 48TS offers a complete tapered spear-and-sleeve package. Remove the tine and hardware before welding the sleeve into a properly designed frame, and allow the assembly to cool before reinstalling the spear.

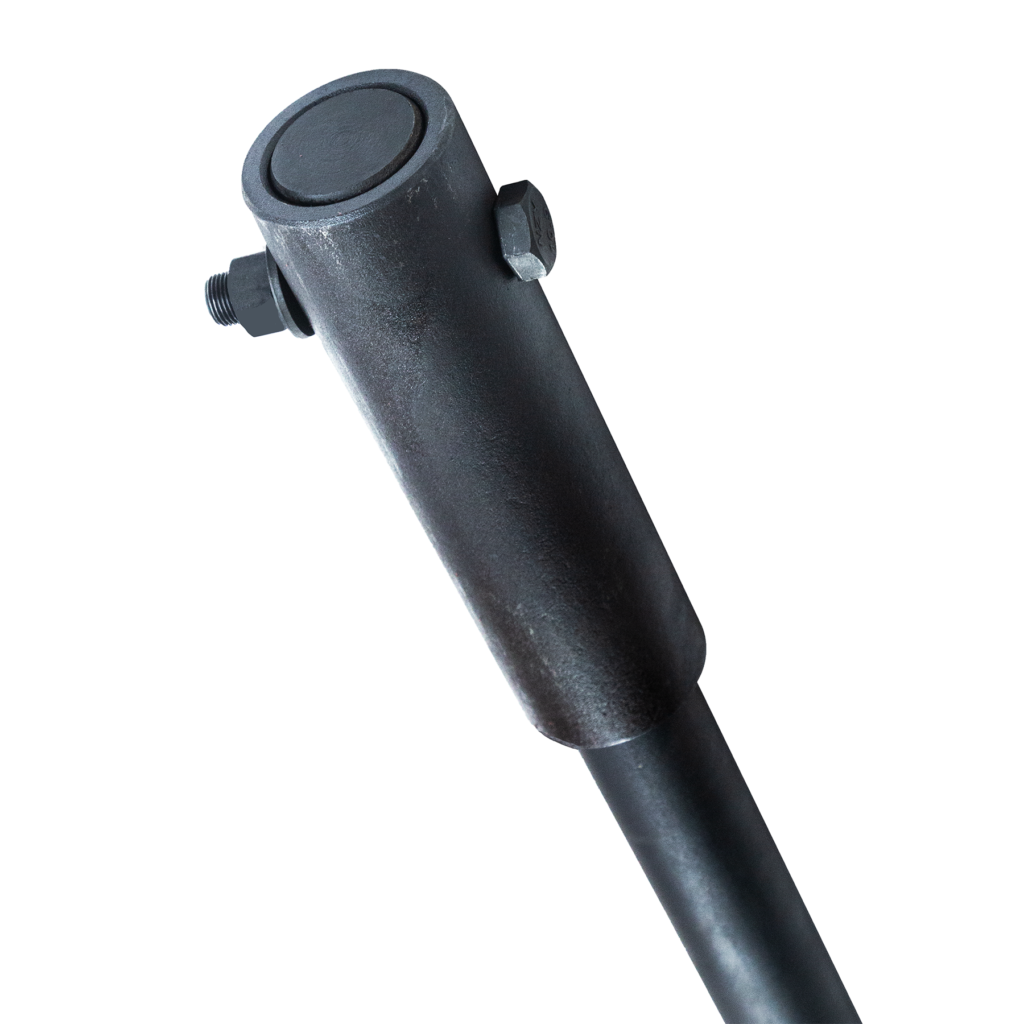

3. 48FX: A Cross-Bolt Hayspears® Assembly
The product ranked third was called 48SX in the original article. PRO-Link’s current product listing for the same SKU 053 is the 48FX bolt-on bale fork, so we use the current model name here. The 48FX has a 48-inch by 1⅝-inch fluted straight cross-hole spear. Its updated individual-spear rating is 3,750 pounds, up from 3,000 pounds.
The complete assembly includes the 155 weld-in sleeve, cross-bolt, and retaining nut. After the sleeve is installed and cooled, the spear slides into it until the holes align. The cross-bolt then retains the spear inside the sleeve.
“Bolt-on” describes how the spear is retained; it does not mean the 155 sleeve bolts directly to a machine. Replacement fit depends on the shank profile, sleeve dimensions, cross-hole position, and correct hardware. A matching 1⅝-inch diameter by itself is not enough to establish compatibility.

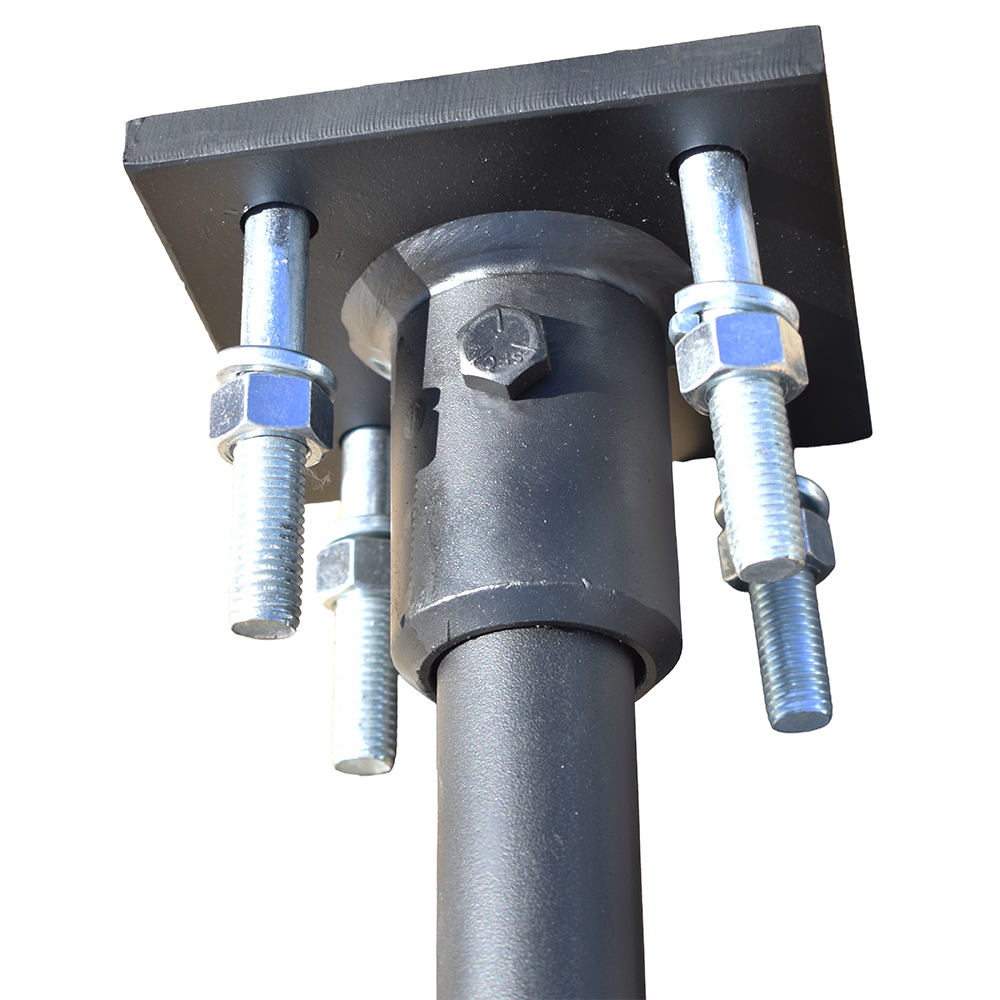

4. 49BX: A Bracketed HAYSTIX® Bale Spear
The 49BX bracketed hay spike takes fourth place. It uses a 49-inch by 1¾-inch straight square spear with a cross hole. The package includes the 175BU bracket, two 58X3U U-bolt assemblies, and the applicable fastening hardware. Its updated individual-spear rating is 4,000 pounds, up from 3,500 pounds.
Two connections make this model different from the tapered 49TXJ. A cross-bolt retains the spear in its bracket, while the U-bolts fasten the bracket to compatible 3-inch by 3-inch square frame tubing. The 49BX is therefore serviceable without being a tapered or Doublenut® model.
The presence of 3-inch tubing does not, by itself, confirm that a frame is suitable. Bracket position, frame strength, clearance, spear spacing, hardware condition, and the completed attachment’s capacity must all be checked.
5. 48SS: A Fluted Cross-Bolt Hayspears® Assembly
The 48SS cross-bolt bale spike rounds out the top five. This 48-inch by 1⅝-inch fluted Hayspears® assembly includes the S48S tine, 155 weld-in sleeve, cross-bolt, and mounting nut. Its updated individual-spear rating is 3,750 pounds, up from 3,000 pounds.
Like the 48FX, the 48SS uses aligned holes through a straight spear and sleeve. It does not use a tapered sleeve or a conical retaining nut. The fluted sides should be oriented according to the installation instructions, and the spear, sleeve, cross-bolt, nut, welds, and surrounding frame should be inspected during routine maintenance.
The 48SS is a useful choice for a customer who needs a complete cross-bolt assembly rather than only a replacement tine. Check the exact mounting dimensions before replacing another model with it.
How to Choose the Right Bale Spear
Start with the mounting method. The 49TXJ uses a tapered 144T sleeve and Doublenut® hardware. The 48TS uses a tapered 114T sleeve and conical nut. The 48FX and 48SS use straight cross-hole retention in a 155 weld-in sleeve. The 49BX uses a cross-bolt within a bracket secured by U-bolts to compatible square tubing. None of those systems should be treated as interchangeable on diameter alone.
Next, consider length, bale weight, and the complete equipment setup. The weight of a bale changes with crop, size, moisture, density, and wrapping. Confirm the number and placement of spears and any stabilizers. Compare the intended load with the capacities of the frame, mounting hardware, coupler, loader, tractor or skid steer, and the machine manufacturer’s operating limits. The lowest-rated part of the complete system sets the working limit. A new spear rating does not automatically raise a finished attachment’s rating.
Finally, inspect equipment before work and operate within the applicable instructions. Keep loads low during travel, avoid sudden turns and stops, and do not operate with a damaged or loose spear assembly. If you are building or altering a hay frame, have the complete design and installation reviewed by a qualified fabricator or engineer.
Questions & Answers
Are these the five best-selling bale spears from every manufacturer?
No. The ranking covers individual PRO-Link models based on our internal unit-sales records. It is separate from PRO-Link’s statement about the broader HAYSTIX® line.
What are the new Hayspears® and HAYSTIX® ratings?
The standard 1⅝-inch Hayspears® line has increased from 3,000 to 3,750 pounds. The standard 1¾-inch HAYSTIX® line has increased from 3,500 to 4,000 pounds. Use the updated specification for the exact model; specialty products may have different ratings.
Do all five spears use the Doublenut® system?
No. Among these five, the 49TXJ uses Doublenut® hardware. The 48TS uses a single conical retaining nut. The 48FX and 48SS use cross-bolts through weld-in sleeves, while the 49BX uses a cross-bolt inside a bracket attached with U-bolts.
Does the new spear rating increase my loader or hay-frame rating?
No. The spear’s rating applies to the spear under its specified conditions. Your machine and completed attachment remain subject to their own limits. Check the exact model, load-center conditions, mounting parts, and the lowest-rated component before use.
PRO-Link backs these models with its one-year limited warranty under the published terms. For help choosing a spear or matching one to an existing frame, contact PRO-Link with your model number, mounting photos, and intended application.
