3AB47 47 Inch Class 3 Lower Fork Carriage Bar

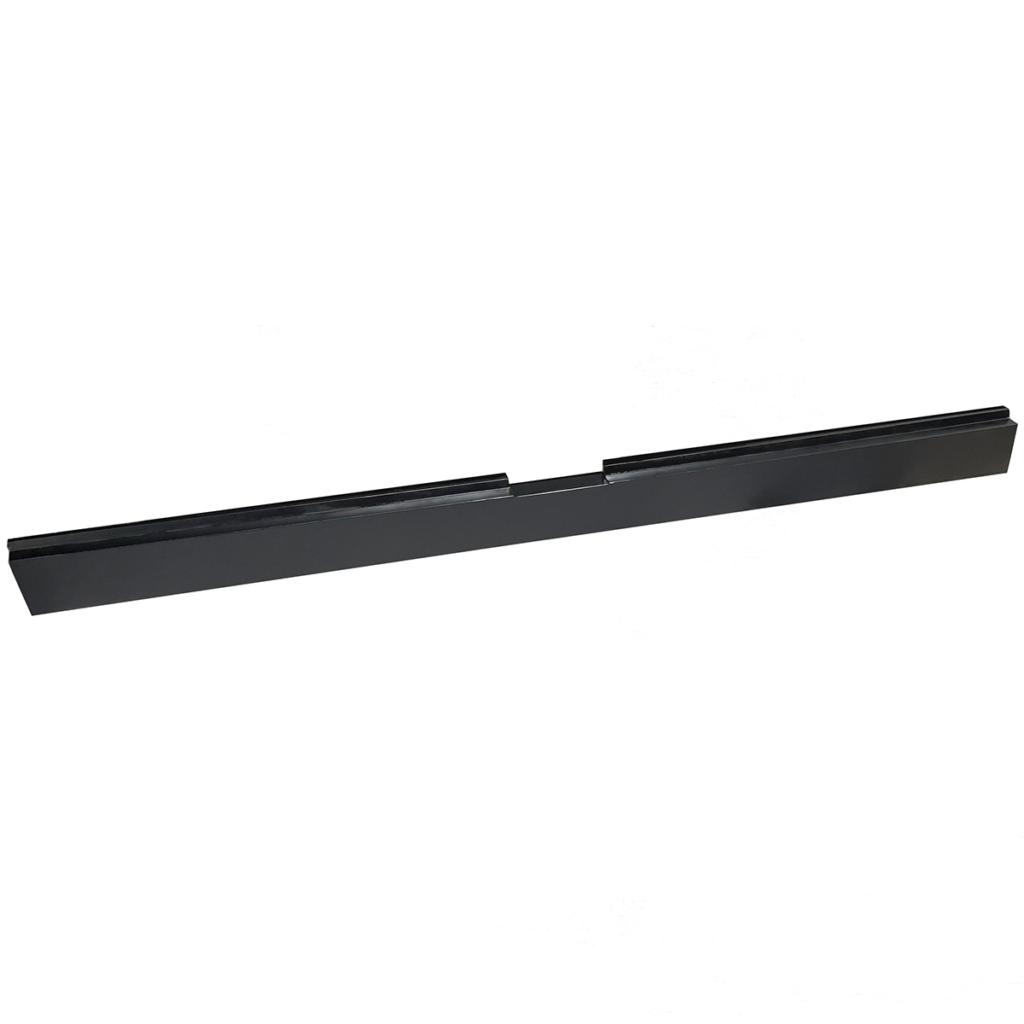

The ALLPROFORKS® 3AB47 47 inch Class 3 lower fork carriage bar supplies the bottom engagement rail for a compact forklift carriage, pallet-fork frame, telehandler fork assembly, or custom material-handling attachment. Its 47-inch length suits fabrication and repair projects that need a narrower frame than the 72-inch rail system. Made from high-strength structural steel, it provides the required lower connection surface for compatible ITA Class 3 hook-type forks when installed in a correctly designed carriage.

This product is one weld-in lower bar. It is not a complete carriage, finished attachment, capacity rating, or universal bolt-on replacement. Compatibility depends on the fork hooks, required carriage width, upper rail, finished spacing, frame structure, welding procedure, and the machine that will carry the completed assembly.

47 Inch Class 3 Lower Fork Carriage Bar for Compact Frames

Hook-type forks connect to a carriage through separate upper and lower hooks. The upper hooks hang from the notched top rail and carry the forks on the frame. The lower hooks engage the smooth bottom rail to help keep the forks seated and aligned. The 3AB47 provides this lower-hook engagement surface.

Lower-rail engagement should not be confused with reinforced heel support. A reinforced fork heel has additional steel at the rounded transition between the upright and horizontal blade. That thicker area helps the heel withstand wear caused by repeated friction and contact. Heel reinforcement is a feature of the fork itself, not the 3AB47 carriage bar.

The 47-inch width can help keep a properly engineered attachment compact while allowing compatible forks to move horizontally for different pallets and load widths. Possible uses include forklift carriage repairs, warehouse equipment, compact loader fork frames, telehandler assemblies, agricultural attachments, and OEM fabrication. These are potential applications rather than guaranteed fit for a specific machine.

Projects requiring wider fork-positioning range can be compared with the 72-inch 3AB72 lower forklift bar. Buyers can also review the related-company ALLPROFORKS carriage-bar overview for general information about carriage classes, top and bottom rails, and available widths.

Matching the 3AT47 and Controlling Rail Alignment

PRO-Link specifies a 20-1/8-inch ITA Class 3 vertical rail setup for the 3AB47. Because drawings may identify measurement points differently, the fabricator must confirm the reference surfaces, fork-hook geometry, and finished spacing before placing or welding either rail. The bars must remain straight, parallel, level, and correctly spaced so the forks engage without binding, excessive looseness, or misalignment.

Pair the lower bar with the 3AT47 Class 3 top carriage bar when the project requires a coordinated 47-inch rail set. The 3AT47 supplies the upper hanging surface and locking positions, while the 3AB47 engages the lower hooks. The upper rail, forks, frame members, backplate, coupler, welding, and other components are selected separately unless a product listing specifically states otherwise.

Before fabrication, confirm the required rail length, Class 3 hook and lock dimensions, planned frame width, upper-to-lower placement, mounting structure, operating clearances, and inspection requirements. The fork carriage bar category provides verified alternatives for comparing Class 2 and Class 3 upper and lower rails.

A qualified professional familiar with welded lift-truck carriages should complete and inspect the installation. Welding heat and frame distortion can move the bars out of alignment, so fork engagement and lock operation must be checked after fabrication. The finished system’s capacity depends on the machine data plate, load center, forks, rails, frame, welds, coupler, attachment weight, and working conditions. The 3AB47 is covered by PRO-Link’s one-year limited warranty against manufacturer’s defects, subject to the complete terms.

Questions & Answers

Is the 3AB47 a top or bottom carriage bar?

It is the smooth 47-inch lower rail for a Class 3 carriage. The separately sold 3AT47 is the corresponding notched upper bar.

What is included with the 3AB47?

The product consists of one weld-in lower carriage bar. The upper rail, forks, frame, coupler, welding, inspection, and other required components are separate.

Will the 3AB47 fit every Class 3 forklift carriage?

No. Verify the rail width, fork-hook geometry, measurement points, finished spacing, frame design, mounting structure, clearances, and complete machine requirements before fabrication.
