3AB72 72 Inch Class 3 Lower Forklift Bar

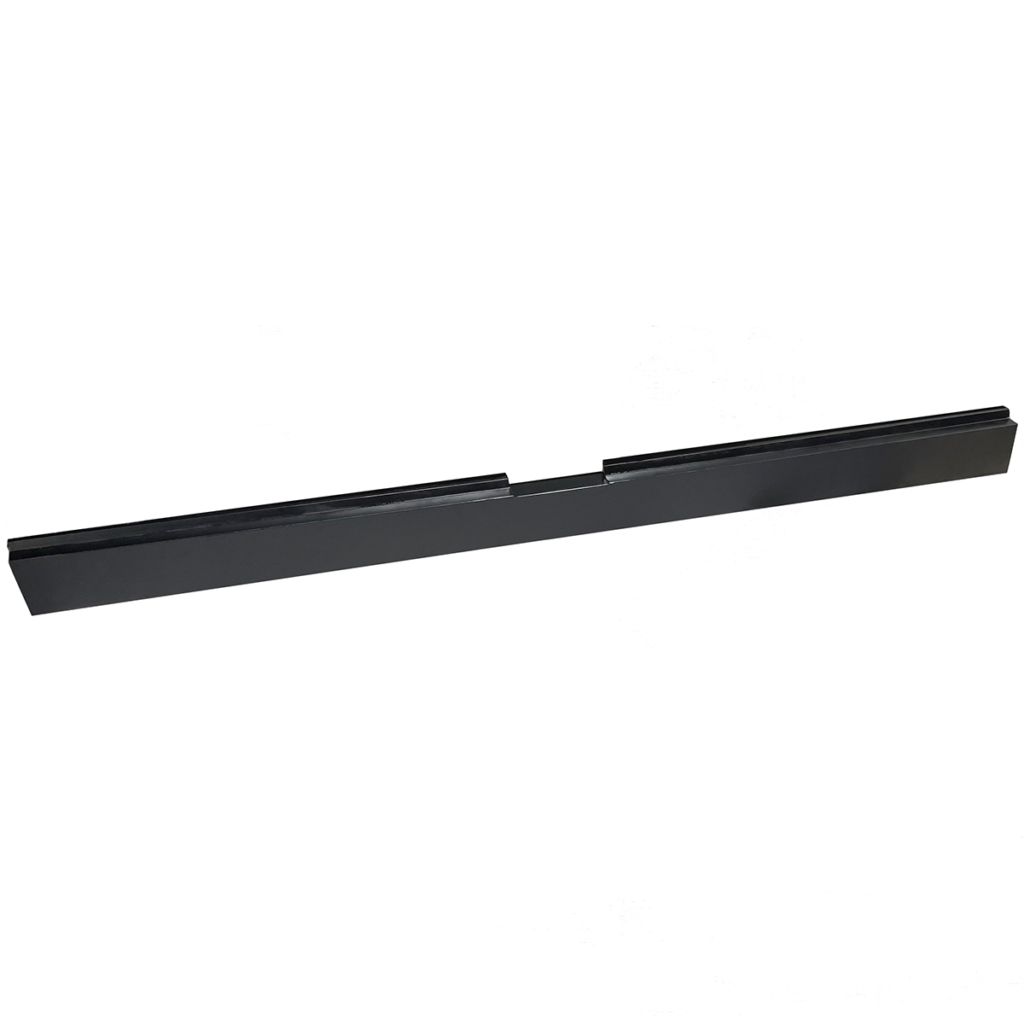

The ALLPROFORKS® 3AB72 72 inch Class 3 lower forklift bar is a weld-in component for building, repairing, or rebuilding a wide carriage or pallet-fork frame. Its 72-inch span gives a properly engineered carriage more room for positioning compatible forks beneath wide pallets, long bundles, building materials, farm products, and large crates. High-strength structural steel supports demanding fabrication and repair work where accurate rail placement and fork-hook engagement are essential.

The 3AB72 is one lower carriage rail. It is not a complete carriage, finished attachment, universal bolt-on replacement, or capacity rating for the completed equipment. Potential applications include forklift carriage repair, telehandler fork assemblies, loader pallet-fork frames, agricultural attachments, and custom material-handling builds. Every project requires verification of the ITA class, fork hooks, frame structure, rail position, welding procedure, and intended equipment.

Lower Fork-Hook Engagement Across a 72-Inch Carriage

ITA hook-type forks connect to a carriage at two points. The upper fork hooks hang from the top rail and carry the forks on the carriage. The lower hooks engage the bottom rail to help keep the forks seated and aligned. The 3AB72 provides that lower engagement surface; it does not support the heel of the horizontal fork blade.

A correctly designed upper-and-lower rail system allows compatible forks to be repositioned across the carriage. The 72-inch width offers a broader adjustment range than the 47-inch 3AB47 lower carriage bar. That additional width can suit engineered frames intended for oversized pallets, wide crates, bundled supplies, or other loads requiring greater fork spacing.

A wider rail does not increase the rated capacity of the forklift, loader, telehandler, forks, frame, or finished attachment. Capacity depends on the complete system, including the machine data plate, fork ratings, load center, carriage structure, welds, coupler, hydraulics, and any required derating. The ALLPROFORKS carriage-bar overview provides additional information about selecting top and bottom rails by carriage class and width.

Class 3 Spacing, Matching Upper Rail, and Fabrication

PRO-Link specifies a 20-1/8-inch ITA Class 3 vertical rail setup for this component. Fabrication drawings may identify measurement points differently, so the installer must confirm the exact reference surfaces, finished spacing, and fork-hook engagement before cutting or welding. Rail length and a Class 3 label alone do not establish compatibility.

When a project requires a coordinated 72-inch pair, match the 3AB72 with the 3AT72 Class 3 upper forklift bar. The upper rail provides the hanging surface and fork-locking positions, while the 3AB72 provides lower-hook engagement. Both bars must remain straight, parallel, level, and correctly spaced so the selected fork hooks seat without binding, excessive movement, or misalignment.

Before ordering, confirm that the design requires a 72-inch lower rail, compatible Class 3 hook geometry, the specified rail setup, and separately selected structural components. The fork carriage bar category can help buyers compare available top and bottom rails.

Carriage fabrication and structural repair should be completed and inspected by qualified professionals familiar with material-handling equipment. For powered industrial trucks, OSHA’s powered-industrial-truck requirements address manufacturer approval and updated capacity markings when modifications affect capacity or safe operation. The finished carriage must be evaluated as a complete system before service. The 3AB72 is covered by PRO-Link’s one-year limited warranty against manufacturer’s defects, subject to the complete terms.

Questions & Answers

Is the 3AB72 an upper or lower carriage bar?

It is the smooth lower rail for a 72-inch Class 3 carriage. The separately sold 3AT72 is the matching notched upper rail when a coordinated pair is required.

Does the 3AB72 include a complete forklift carriage?

No. It includes one weld-in lower bar. Forks, the upper rail, frame members, coupler, mounting structure, welding, inspection, and other required components are separate.

Will this Class 3 lower forklift bar fit every Class 3 frame?

No. Confirm the rail length, fork-hook geometry, measurement points, finished spacing, frame structure, clearances, welding requirements, and complete equipment specifications before fabrication.
