Description

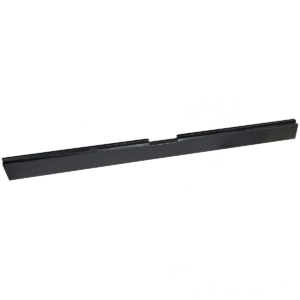

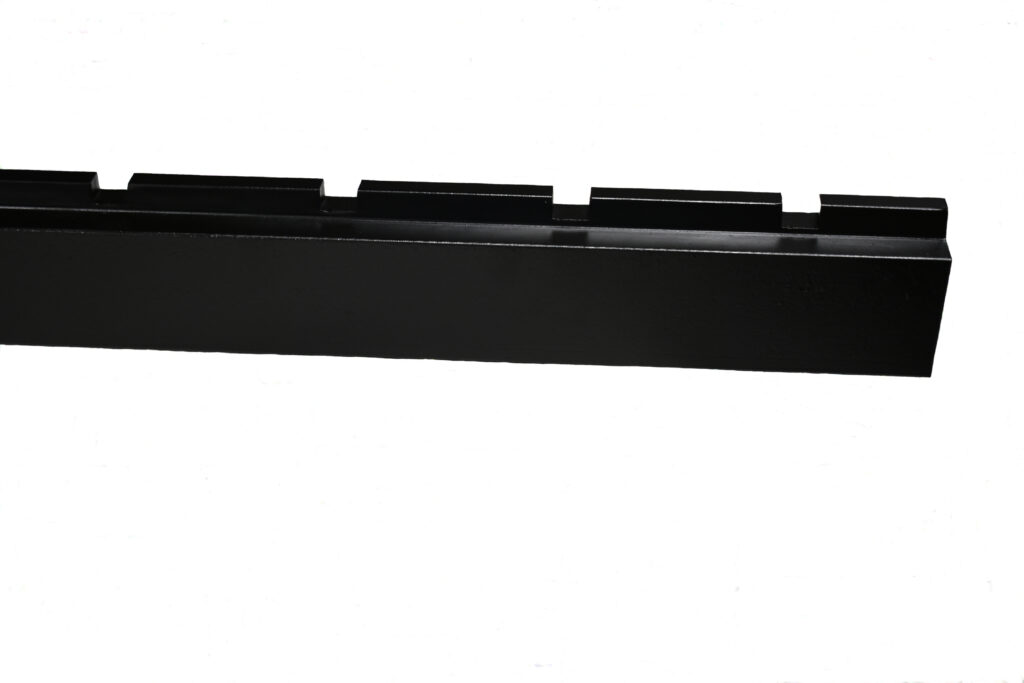

3AT72 Class 3 Forklift Top Rail

The PRO-Link 3AT72 Forklift Top Rail is a precision-manufactured Class 3 ITA upper carriage bar engineered for forklift systems that maintain 20-1/8 inches of vertical spacing from the bottom of the lower rail to the top of the upper rail. This measurement defines a true Class 3 carriage and ensures compatibility with Class 3 fork blades and mounting hardware.

Designed for fabrication shops, equipment manufacturers, and forklift repair facilities, the 3AT72 provides accurate geometry, structural reinforcement, and dependable fork retention in high-capacity material handling environments.

---

True Class 3 ITA Specifications – 20-1/8″ Rail Spacing

Forklift carriage class is determined by vertical rail spacing:

• Class 2: 16 inches

• Class 3: 20-1/8 inches

The 3AT72 is built specifically for Class 3 carriage systems and must be installed within an assembly that maintains the required 20-1/8″ spacing. This ensures:

• Proper fork hook seating

• Correct load distribution across the carriage

• Reduced vertical fork movement

• Compliance with ITA mounting standards

Using incorrect rail dimensions can result in improper fork engagement and unsafe lifting conditions.

---

72-Inch Upper Rail for Wide Carriage Applications

With a 72-inch length, the 3AT72 top rail is suited for wider forklift carriage assemblies and custom pallet fork frames. It provides continuous upper hook support across the carriage width, helping maintain fork stability during lifting, transport, and load placement.

This length is commonly used in:

• Industrial forklift carriage rebuilds

• Telehandler fork frames

• Heavy-duty loader pallet fork systems

• Custom fabricated ITA fork attachments

---

Secure Fork Hook Engagement

The upper carriage rail supports the top hook of Class 3 fork blades. When properly installed with a matching lower rail, the 3AT72:

• Stabilizes fork positioning

• Prevents excessive vertical play

• Minimizes hook and rail wear

• Distributes lifting forces evenly

Maintaining precise rail geometry is essential for preserving rated forklift capacity and long-term component durability.

---

Heavy-Duty Steel Construction

Manufactured from structural-grade steel, the 3AT72 Forklift Top Rail is engineered to withstand:

• Repetitive heavy load cycles

• Shock loads during pallet entry

• Off-center lifting stress

• Industrial warehouse and agricultural environments

Its reinforced profile maintains dimensional stability under load, making it ideal for both OEM fabrication and carriage repair applications.
