ALLPROFORKS® Forklift Carriage Bars: Class 2 and 3 Guide
How Top and Lower Forklift Carriage Bars Work
Forklift carriage bars form the upper and lower mounting surfaces used by compatible ITA hook-type forks. When these rails are built into a properly designed carriage, the forks can hang at the correct height, move horizontally for different loads, and lock into an appropriate position. PRO-Link offers ALLPROFORKS® weld-in top and lower rails for new fabrication, properly engineered repairs, and custom pallet-fork frames.
These products are individual fabrication components—not complete carriages, finished attachments, or universal bolt-on replacements. Correct selection requires more than matching the rail’s length. The fabricator must verify the ITA class, upper or lower position, fork-hook geometry, rail spacing, frame design, welding requirements, coupler, and capacity of the complete machine-and-attachment system.
How Top and Lower Forklift Carriage Bars Work
ITA hook-type forks connect to a carriage at two different points. The upper hook hangs from the top rail. The lower hook engages the bottom rail. Together, those two connections keep a compatible fork seated against the carriage while allowing it to slide sideways when the fork lock is released.

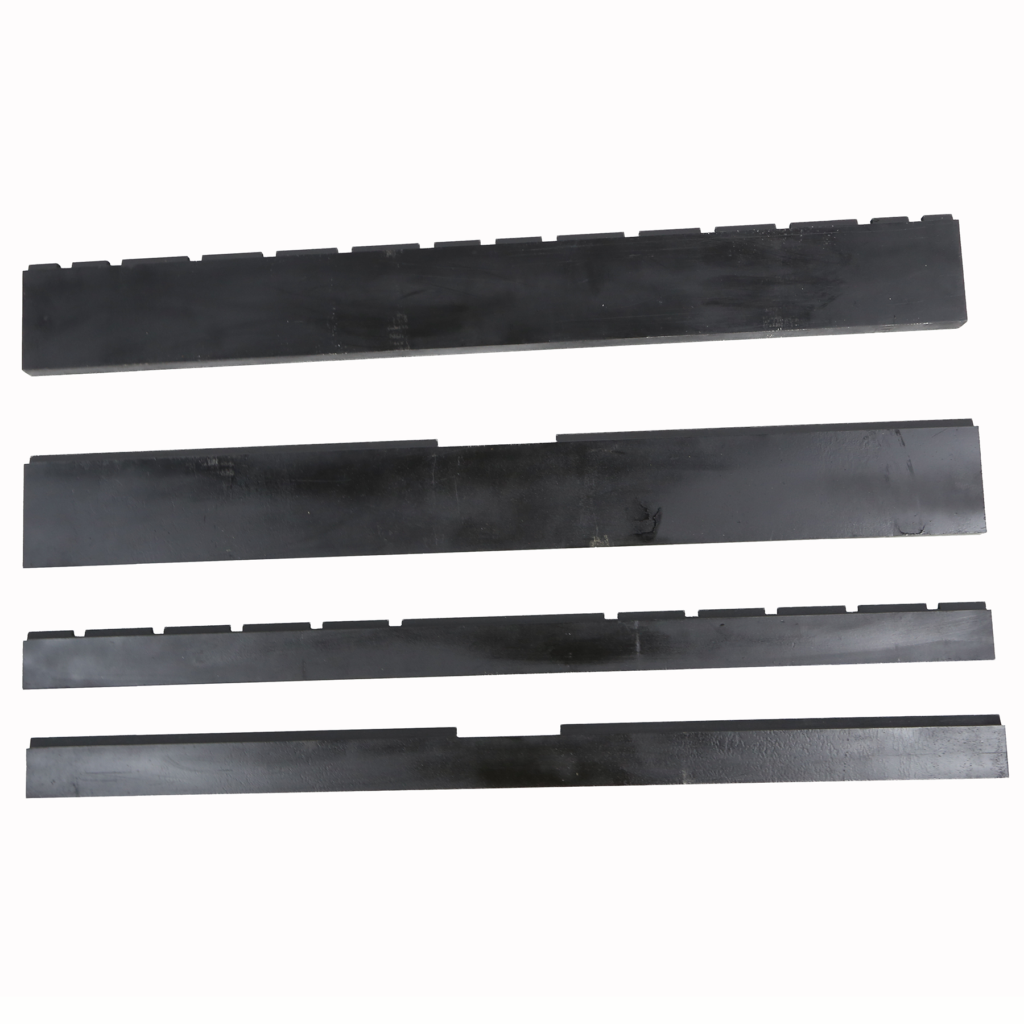

The top carriage bar normally includes notches along its upper edge. These notches provide locking positions for compatible fork-positioning hardware. After the forks are spaced for the load, each lock must engage fully before lifting.
The lower carriage bar has a different job. It provides the engagement surface for the fork’s lower hook. It does not support the heel of the fork blade, carry the blade’s rounded corner, or replace the upper rail.
This distinction matters because “reinforced heel” describes a feature built into the fork itself. The heel is the rounded transition between the vertical shank and horizontal blade. A reinforced fork has additional steel in that area, often visible as a thicker bulge, to help the heel withstand wear from repeated friction and contact. Heel reinforcement is not created by the lower carriage rail.
Carriage Class, Fork Hooks, and Rail Dimensions
An ITA carriage class identifies a dimensional mounting system. Compatible forks and rails must use the same class and hook geometry. A general ITA chart may show a nominal Class 3 carriage height of 20 inches, but that number should not be substituted automatically for the installation dimensions specified for an individual rail set.
Class designation alone does not confirm that a bar fits an existing forklift, loader frame, telehandler carriage, or custom attachment. The installer must compare:
- Fork upper- and lower-hook dimensions
- Rail profiles and engagement surfaces
- Fork-lock design and notch engagement
- Required upper-to-lower rail placement
- Carriage width and available fork travel
- Backplate, frame, coupler, and surrounding structure
- Welding procedure and finished alignment

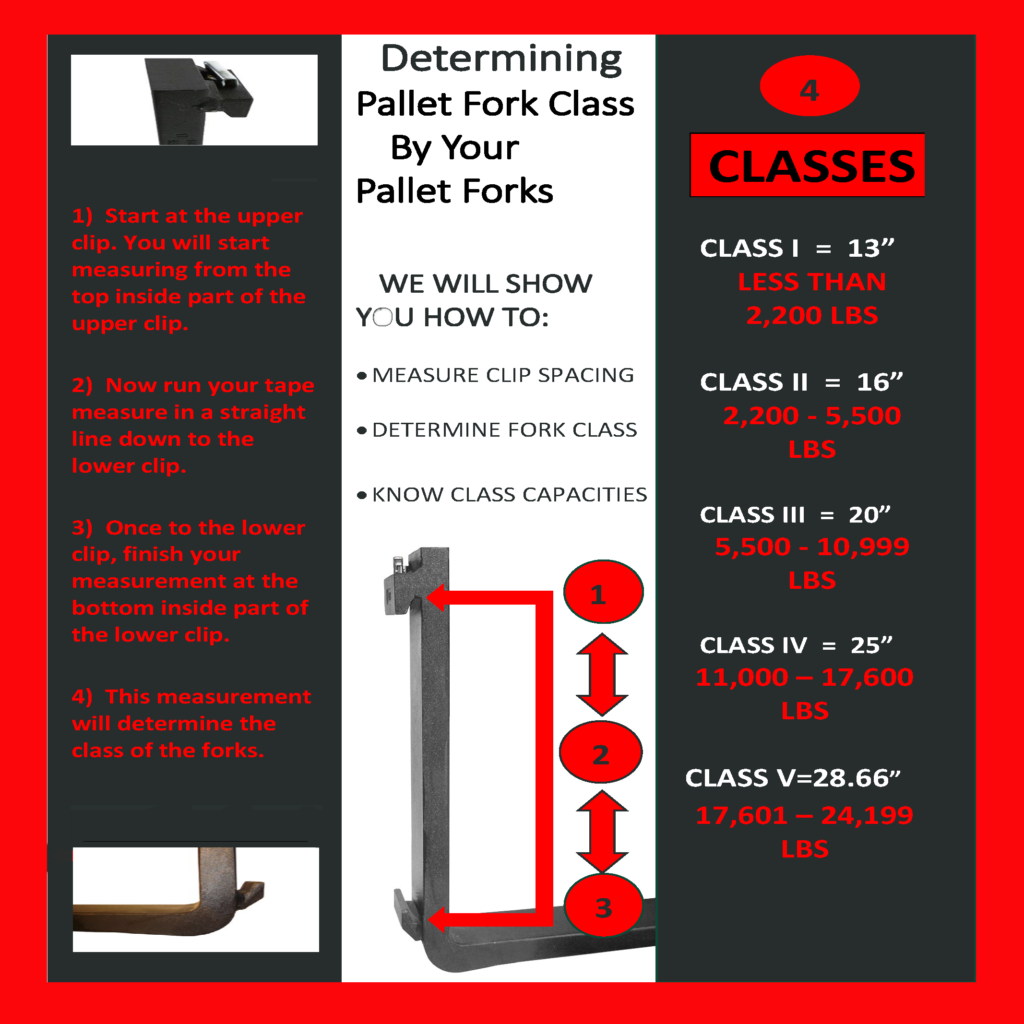

For additional hook profiles and carriage-class diagrams, the related ALLPROFORKS website provides an ITA forklift fork and mounting-class guide. It is a useful measuring reference, but the product drawing and actual fork fit must control the final fabrication decision.
Current ALLPROFORKS® Carriage-Bar Sizes and Pairs
The current PRO-Link fork carriage bar category includes matching Class 2 and Class 3 upper and lower components:
| ITA class | Rail width | Upper rail | Lower rail |
|---|---|---|---|
| Class 2 | 47 inches | 2AT47 | 2AB47 |
| Class 2 | 60 inches | 2AT60 | 2AB60 |
| Class 3 | 47 inches | 3AT47 | 3AB47 |
| Class 3 | 72 inches | 3AT72 | 3AB72 |
The 47-inch Class 3 pair can suit an engineered compact carriage where standard pallets and manageable overall frame width are priorities. The 72-inch Class 3 pair provides more horizontal fork-positioning range for wide pallets, large crates, long bundles, agricultural supplies, and other broad material.
A 72-inch bar does not increase the capacity of the machine, forks, or completed attachment. It changes the available carriage width and fork-spacing range. Capacity remains limited by the complete system and its lowest-rated component.
Understanding the 20-1/8-Inch Class 3 Setup
PRO-Link specifies a 20-1/8-inch vertical rail setup for the 3AT47/3AB47 and 3AT72/3AB72 Class 3 combinations. Fabrication drawings can identify measurement points differently, so the installer must confirm exactly which rail faces, edges, or reference points establish that dimension.
Do not round the product-specific setup down to 20 inches merely because a general ITA reference describes a nominal 20-inch Class 3 carriage height. The two figures may refer to different measurement points. The finished test is whether the selected upper and lower fork hooks seat correctly, the forks move without binding or excessive looseness, and the locks engage the top rail as intended.
Throughout fabrication, the upper and lower bars must remain straight, level, parallel, and correctly spaced. Welding heat and frame distortion can move a rail away from its planned position. The fabricator should check measurements before welding, during the work, and again after the assembly cools.
Welding, Capacity, and Machine Compatibility
ALLPROFORKS® carriage rails are weld-in structural components. Installation and carriage repair should be performed by a qualified professional familiar with lift-truck carriages and welded material-handling equipment. The welder or fabricator must evaluate the base material, joint design, reinforcement, alignment, fork engagement, lock operation, clearances, and intended load.
These bars may be considered for properly designed forklift carriages, telehandler fork assemblies, skid-steer pallet-fork frames, tractor-loader attachments, agricultural equipment, repair projects, and custom fabrication. Those applications do not guarantee direct fit. Each carrier can require a purpose-built backplate, coupler, frame, reinforcement, and professional capacity evaluation.
A single rail, matched pair, or wider carriage does not establish the finished equipment’s rating. Capacity depends on the machine data plate, load center, forks, rails, frame, welds, coupler, hydraulics, attachment weight, and any required derating. Operators must follow the lowest applicable rating.
For powered industrial trucks covered by OSHA’s forklift standard, OSHA 1910.178(a)(4) and (a)(5) address modifications that affect capacity or safe operation, manufacturer approval, updated plates or markings, and identification of non-factory front-end attachments. Applicability can depend on the equipment and workplace, so the responsible employer, equipment manufacturer, and qualified professionals should determine the requirements for the specific project.
Inspection and Replacement Decisions
Inspect the complete carriage regularly. Check the upper notches, lower engagement surface, fork hooks, locking hardware, rails, welds, backplate, coupler, and structural frame for wear, cracking, bending, looseness, distortion, or other damage. Both fork locks should engage before lifting.
Difficulty moving a fork does not automatically mean the rail needs replacement. Dirt, corrosion, damaged fork hooks, bent structure, incorrect spacing, or misalignment may also cause binding. Likewise, excessive fork movement may involve worn hooks, rail wear, incorrect class geometry, or damage elsewhere in the carriage.
A damaged rail should not be covered, heated, ground, straightened, or welded based on guesswork. Determine why the damage occurred, inspect the entire assembly, and use an approved repair or replacement procedure. A new carriage bar cannot restore capacity to an inadequate frame, damaged coupler, worn fork, or improperly rated machine.
Questions About Forklift Carriage Bars
Does a lower carriage bar support the fork heel?
No. The lower bar engages the fork’s lower hook. Reinforced heel support is additional steel built into the rounded blade-to-shank area of a fork to help resist friction and contact wear.
Can a Class 3 rail fit every Class 3 forklift or attachment?
No. ITA class is only one compatibility factor. Verify rail length, exact measurement points, fork-hook geometry, locks, frame construction, coupler, welding requirements, clearances, and finished capacity.
Does a 72-inch carriage bar increase lifting capacity?
No. The additional width provides more fork-positioning range. The capacity of the finished equipment is determined by the complete system and its lowest-rated component.
ALLPROFORKS® carriage bars sold by PRO-Link are covered by a one-year limited warranty against manufacturer’s defects, subject to the complete warranty terms.
